Monitoring, Events & Webhooks

Component Monitoring

The components of moat which should be monitored in a production environment:

• Moat API Server: HTTP errors, CPU consumption
• Ingestion processes: Kubernetes CronJob status
• Postgres Database: Performance and storage capacity

Events in Moat

Moat supports several event types which can be pushed into another system for monitoring/audit.

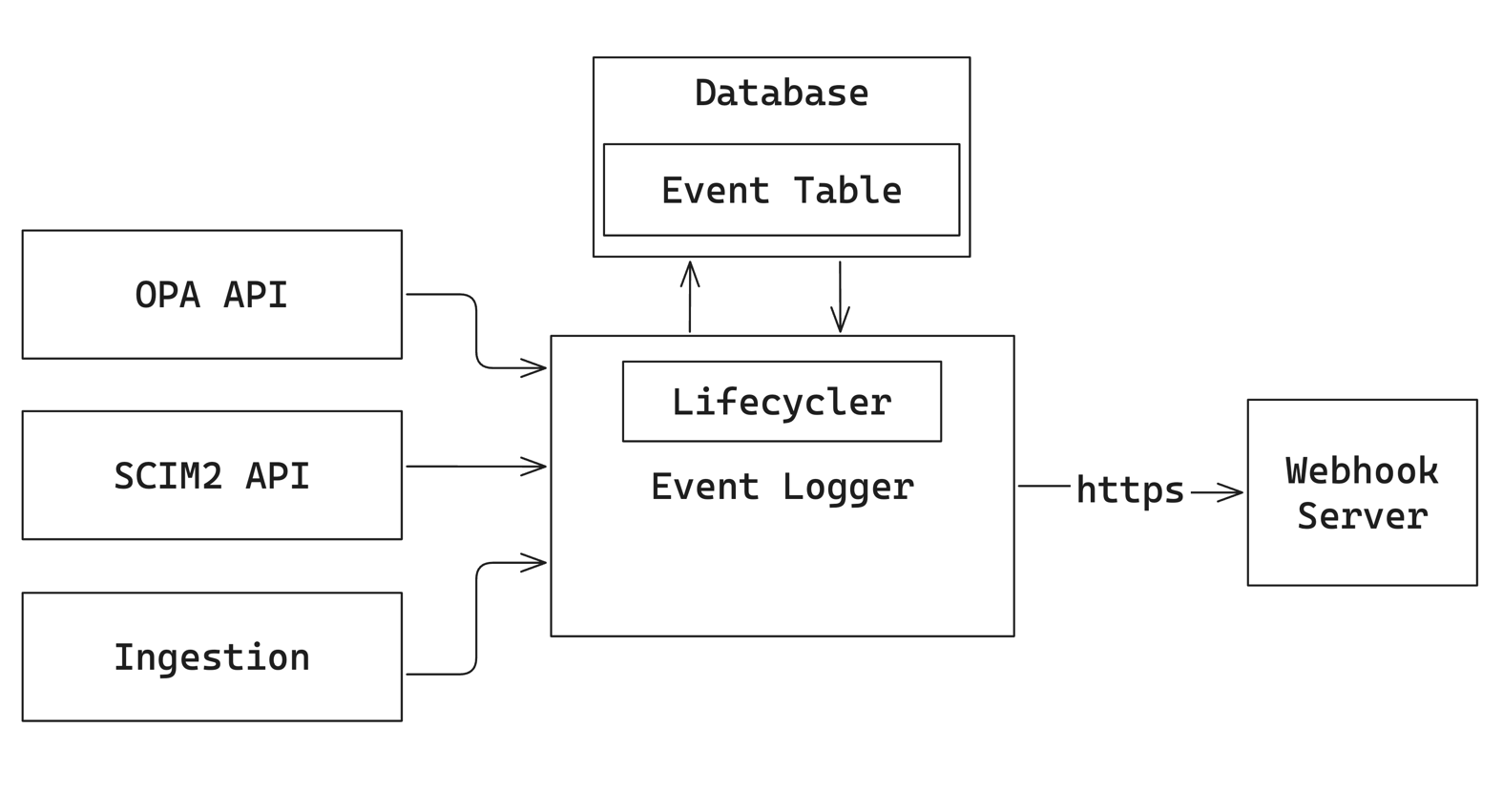

Event Management

Any process which makes a change to data within moat will generate an event. These events are passed to the Event Logger which is responsible for deliviering them according to the specifics of the event logger class.

Event Types

The event types currently supported are:

Event Type	Actions	Description
principal	create update delete	Principal creation, update and deletion
resource	create update delete	Resource creation, update and deletion
ingestion	started completed failed	Status of ingestion processes
opa	status_update decision	OPA status reports and decisions
bundle	rebuilt consumed	Actions performed on policy bundles

Configuration

All event logger configuration items use the prefix: event_logger.<type> where the type matches the NAME field on the event logger subclass. Currently only http is available.

Configuration Item	Description	Example
event_logger.type	The value of the NAME feild on the logger subclass	http

Available Event Loggers

HTTP Logger

The HTTP event logger is selected by configuring event_logger.type: http. It provides webhooks, sending json as a POST request. This logger is configured as follows:

Configuration Item	Description	Example
event_logger.http.url	The fully qualified URL endpoint the webhook should be sent to	https://example.com/webhook
event_logger.http.headers	A list of headers to send as comma-seperated name=value pairs	Api-Key=ABCD,content-type=application/json
event_logger.http.extra_args	Additional parameters to be added to the object delivered (comma-seperated name=value pairs)	source=moat
event_logger.http.ssl_verify	Whether to verify the SSL certificate of the called API (default=true)	false
event_logger.http.flatten_payload	Whether to flatten nested json (default=false)	true

Integration

While the default implementation of the event logger is powerful, integrations with other systems can be tricky. For complex integrations where data may need to be presented in a specific format, fluentd is recommended as a simple proxy. fluentd has a lot of available plugins which can sink events to databases, streams and other systems.
